Tutorial: SearchComplete API Object Model

This tutorial explains the object model of the Hotel Search Complete API. If you're familiar with hotel search APIs and JSON/REST basics, this guide will help you understand how to structure requests and navigate responses.

What You'll Learn:

• How to structure a search request
• Understanding the response object hierarchy
• Key objects and their relationships
• Practical examples for common use cases

Prerequisites: Basic understanding of REST APIs and JSON. Familiarity with hotel booking concepts (properties, rates, rooms, cancellation policies).

POST /search/searchcomplete

This single endpoint handles hotel searches and returns comprehensive results including properties, availability, rates, and policies.

GET /search/searchcomplete/{identifier}

Retrieves additional pages when search results exceed one page. The identifier comes from the pagination object in the initial response.

The API uses OAuth 2.0 Bearer tokens. Include your token in the Authorization header:

Authorization: Bearer YOUR_ACCESS_TOKEN

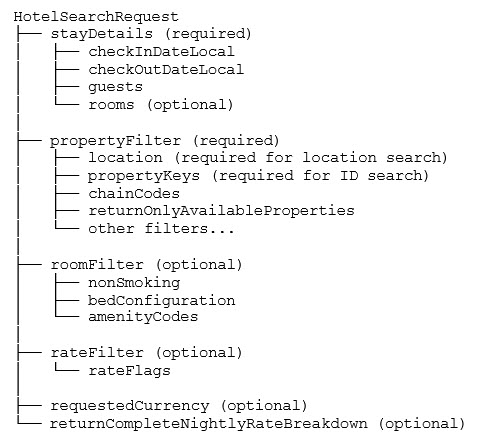

The request is organized into logical groups:

stayDetails (Required)

Purpose: Defines when and for whom you're searching.

Required Fields:

• checkInDateLocal: Check-in date (YYYY-MM-DD format)
• checkOutDateLocal: Check-out date (YYYY-MM-DD format)
• guests: Number and ages of guests

Example:

{
 "stayDetails": {
  "checkInDateLocal": "2025-03-15",
  "checkOutDateLocal": "2025-03-17",
  "guests": {
   "numberOfAdults": 2,
   "numberOfChildren": 1,
   "childAges": [
    5
   ]
  },
  "rooms": 1
 }
}

propertyFilter (Required)

Purpose: Defines which properties to search for and what data to return.

Search By Location:

{
 "propertyFilter": {
  "location": {
   "city": "San Francisco",
   "countryCode": "US"
  },
  "returnOnlyAvailableProperties": true,
  "chainCodes": [
   "HI",
   "MA"
  ],
  "imageSize": "LARGE",
  "returnAllImageURLs": true
 }
}

Search By Property IDs

{
 "propertyFilter": {
  "propertyKeys": [
   "TVPT-12345",
   "TVPT-67890"
  ]
 }
}

Common propertyFilter Options:

• returnOnlyAvailableProperties: Only return properties with availability
• chainCodes: Filter by hotel chains (e.g., ["HI", "MA"])
• categories: Filter by rate categories (e.g., ["CORPORATE", "GOVERNMENT"])
• hotelNameContains: Partial name match
• imageSize: Control image dimensions (SMALL, MEDIUM, LARGE)
• returnRateSummaryInfo: Include rate summary in response

roomFilter (Optional)

Purpose: Filter results by room characteristics. Only rates matching these criteria will be returned.

Example:

{
 "roomFilter": {
  "nonSmoking": true,
  "accessible": false,
  "bedConfiguration": {
   "preferredBedTypes": [
    "KING",
    "QUEEN"
   ]
  },
  "amenityCodes": [
   "WIFI",
   "MINIBAR"
  ]
 }
}

rateFilter (Optional)

Purpose: Filter results by rate characteristics.

Example:

{
 "rateFilter": {
  "rateFlags": {
   "refundable": true,
   "breakfastIncluded": true
  }
 }
}

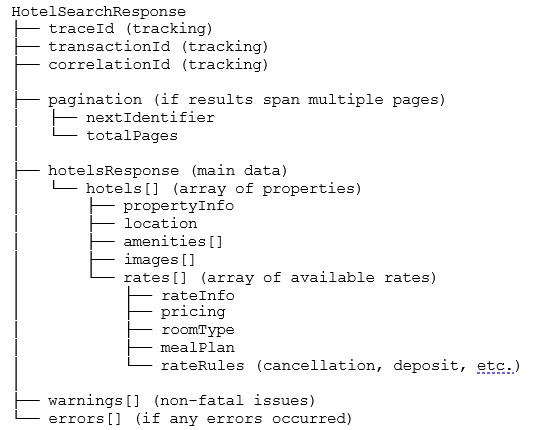

The response follows this hierarchy:

PropertyItem (Hotel Object)

Each hotel in the hotels[] array contains:

• propertyKey: Unique identifier (use this for booking)
• propertyInfo: Hotel details (name, rating, description)
• location: Address and coordinates
• amenities: Property amenities (pool, gym, parking, etc.)
• images: Property images
• rates: Array of available rates (this is what you need for pricing)

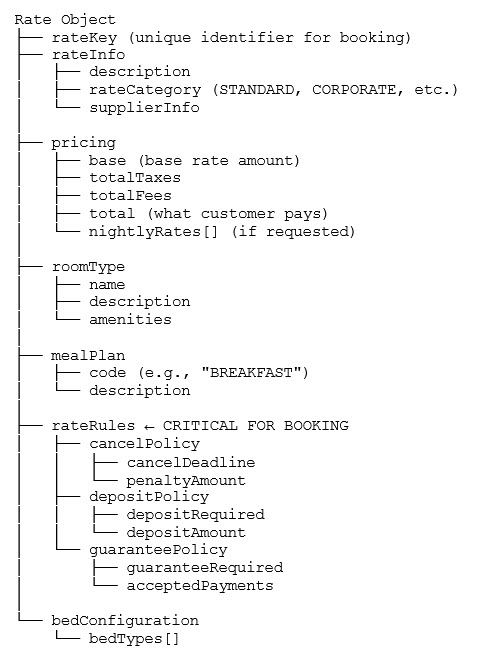

Rate Object

Each rate object contains everything you need to display and book:

Important: The rateRules object contains all cancellation and payment policies. You MUST display this information to users before booking.

Example 1: Basic Location Search Request

{
 "stayDetails": {
  "checkInDateLocal": "2025-04-10",
  "checkOutDateLocal": "2025-04-12",
  "guests": {
   "numberOfAdults": 2,
   "numberOfChildren": 0
  }
 },
 "propertyFilter": {
  "location": {
   "city": "Boston",
   "stateProvince": "MA",
   "countryCode": "US"
  },
  "returnOnlyAvailableProperties": true
 },
 "requestedCurrency": "USD"
}

Example 2: Search with Room and Rate Filters Request

{
 "stayDetails": {
  "checkInDateLocal": "2025-05-15",
  "checkOutDateLocal": "2025-05-17",
  "guests": {
   "numberOfAdults": 2,
   "numberOfChildren": 0
  }
 },
 "propertyFilter": {
  "location": {
   "coordinates": {
    "latitude": 37.7749,
    "longitude": -122.4194
   },
   "radiusMiles": 5
  },
  "chainCodes": [
   "HI"
  ],
  "returnOnlyAvailableProperties": true,
  "categories": [
   "CORPORATE"
  ]
 },
 "roomFilter": {
  "nonSmoking": true,
  "bedConfiguration": {
   "preferredBedTypes": [
    "KING"
   ]
  }
 },
 "rateFilter": {
  "rateFlags": {
   "refundable": true
  }
 },
 "requestedCurrency": "USD"
}

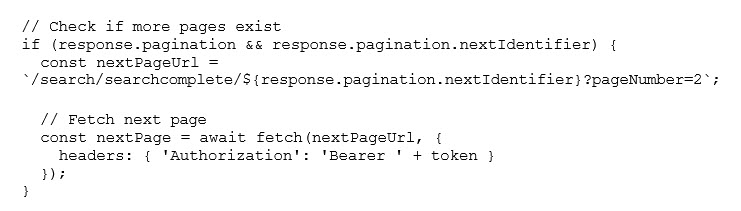

If your search returns many results, use pagination:

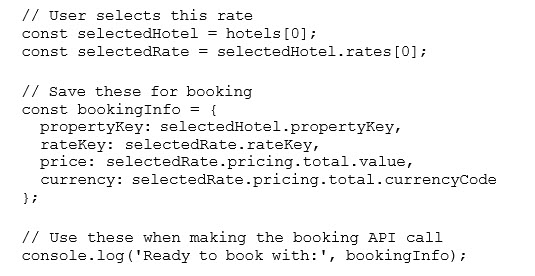

When a user selects a rate, save both the propertyKey and rateKey:

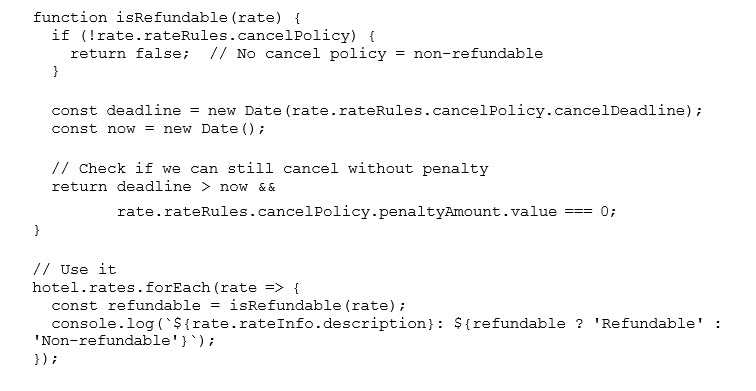

Always check the cancellation policy before displaying rates:

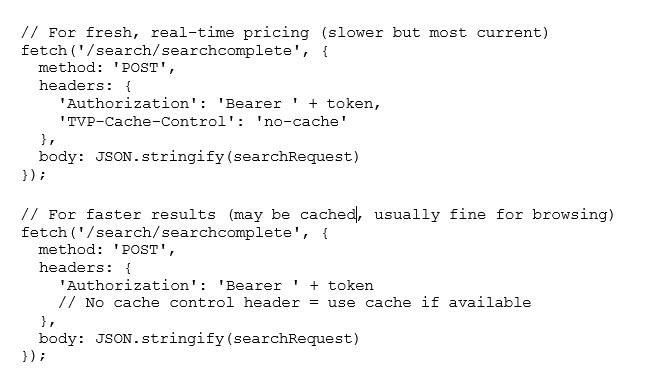

Control whether you want cached or fresh results:

Essential Response Paths

• Not checking rateRules: Always check rateRules.cancelPolicy and rateRules.depositPolicy before displaying rates to users. Showing a rate without cancellation details can lead to customer complaints.
• Forgetting to filter by availability: Set returnOnlyAvailableProperties: true in propertyFilter unless you want to show properties without available rooms.
• Not saving propertyKey and rateKey: You need both identifiers when making a booking. Save them when the user selects a rate.
• Ignoring the warnings array: Check response.warnings for non-fatal issues that might affect the results (e.g., some properties didn't respond in time).
• Not handling pagination: Large searches may return hundreds of properties. Check response.pagination and implement pagination if needed.
• Using cached data for final booking: Before booking, make a fresh search with TVP-Cache-Control: no-cache to get current pricing.

Key Takeaways:

• Request Structure: stayDetails (when/who) + propertyFilter (where) + optional filters (what kind)
• Response Structure: hotels[] contains properties, each with rates[], each rate has pricing and rateRules
• For Booking: Save propertyKey and rateKey from selected rate
• Always Display: Rate rules (cancellation and deposit policies) to users
• Cache Control: Use TVP-Cache-Control header to control whether you get cached or fresh data
• Pagination: Check response.pagination for additional pages of results

Next Steps:

• Review the complete API documentation for all available fields and options
• Test with your authentication credentials in a development environment
• Implement error handling for network issues and API errors
• Build your booking flow using the propertyKey and rateKey from search results
• Contact your Travelport account manager for additional support
